For professional patch-cable applications
- •8 conductors of silver-plated pure OFC copper strands
- •Soft banding
- •Satin matt sheath: highly flexible and ultra resistant
100% shield coverage by a total of 5 layers
- •1 braided shield
- •4 aluminium foil shields
- •To prevent any distortion such as mobile phone signals
- •Jitter-free, no matter which frequency

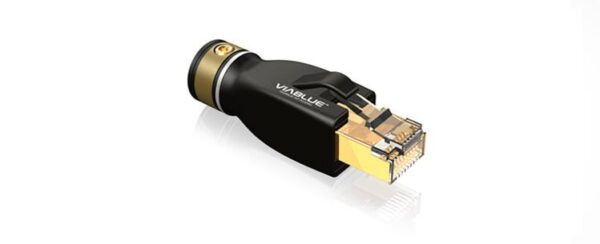

Customized with VIABLUE™ T6s RJ-45 connectors
- •Compact, flame-retardant, break-proof
- •Unique VIABLUE™ Ultragrip surface
- •24 carat real gold-plated contacts
Additional features:
- •VIABLUE™ Cobra braided cable sleeve
OFC Copper
OFC means oxygen-free copper
and is an electrolytically refined copper
used for its high conductivity with a
maximum level of oxygen of 0.001%.
TECHNICAL SPECIFICATIONS
- •Cross section: AWG 26/7
- •Bending radius 5 cm
- •Operating capacity, nominal 45 nF / km
- •Relative propagation velocity, approx. 0.76 C
- •Characteristic impedance 1-100 MHz = 100 +/- 15 ohms
- •Characteristic impedance = 100-250 MHz = 100 +/- 22 ohms
- •Characteristic impedance 250-600 MHz = 100 +/-25 ohms
- •Shield attenuation up to 600 MHz > 60 dB
- •CAT7-Kabel
- •RJ-45 CAT6A connectors
- •Outer Ø incl. sleeving: 10.5 mm
