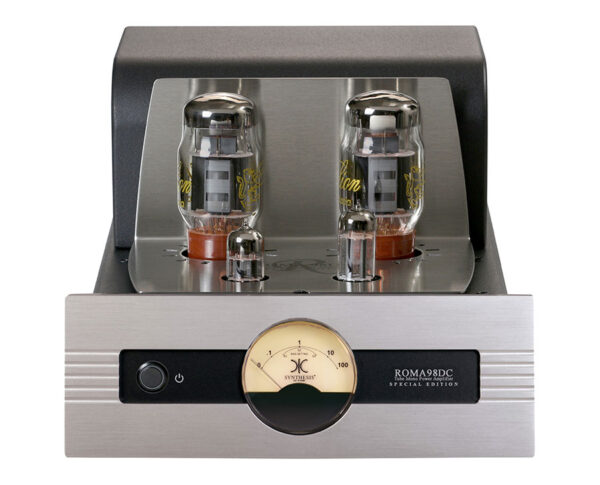

POWER STAGE (1 CH.)

2 X KT66

INPUT STAGE (1 CH.)

1 X 12AY7

DRIVER STAGE (1 CH.)

1 X 6CG7

INPUT IMPEDANCE

100KOhm

INPUT SENSITIVITY

600mV RMS for max power

OUTPUT TAP

4 to 8 Ohm

CONFIGURATION

Ultra linear 43% tap

POWER OUTPUT (1 CH., THD < 1%)

40W RMS @ 6Ohm

FREQUENCY RESPONSE

from 20Hz to 20KHz ± 0.5dB

DISTORTION (MAX POWER)

1% @ 1KHz

S/N RATIO

>90dB “A” weighted

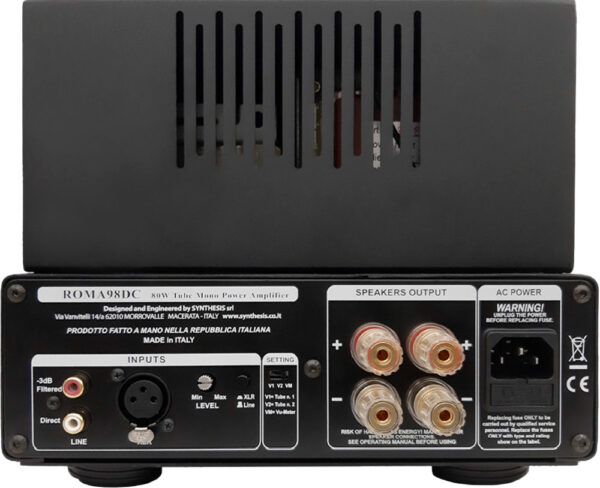

INPUTS

1 Unbalanced Line RCA (Direct)
1 Unbalanced Line RCA “Filtered”
(3dB attenuation com­pared to the direct line. Further -3dB at 20Hz and 20KHz)
1 Balanced line XLR

BIAS SETTING

Manual adjustment, independent for each power tube

DIMENSIONS (W,D,H)

260x415x200mm

WEIGHT

18Kg

LINE POWER

117, 230, 245 Vac, 50/60 Hz (see rear label)

FUSE

See rear label

POWER CONSUMPTION

220W Max
